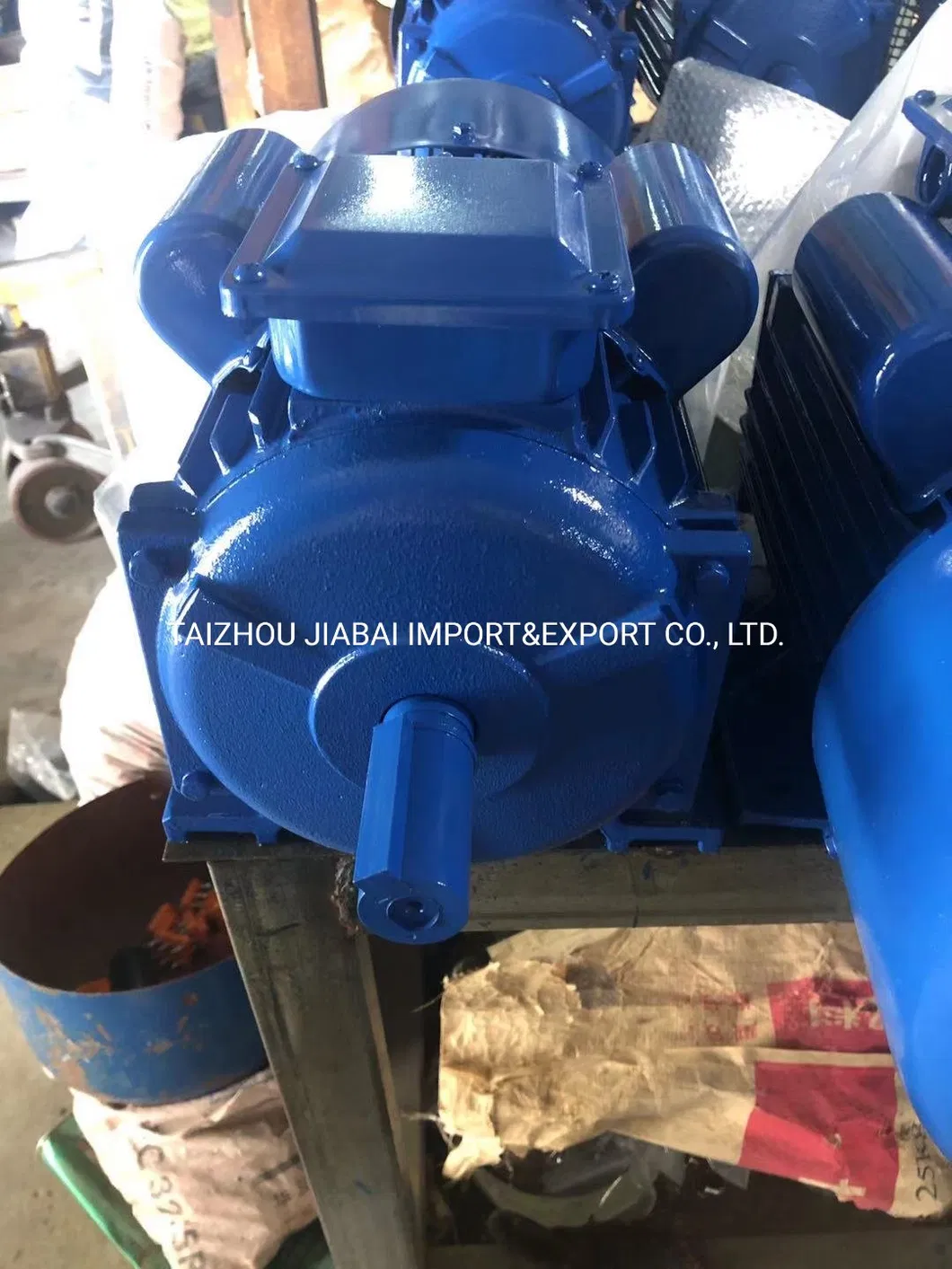

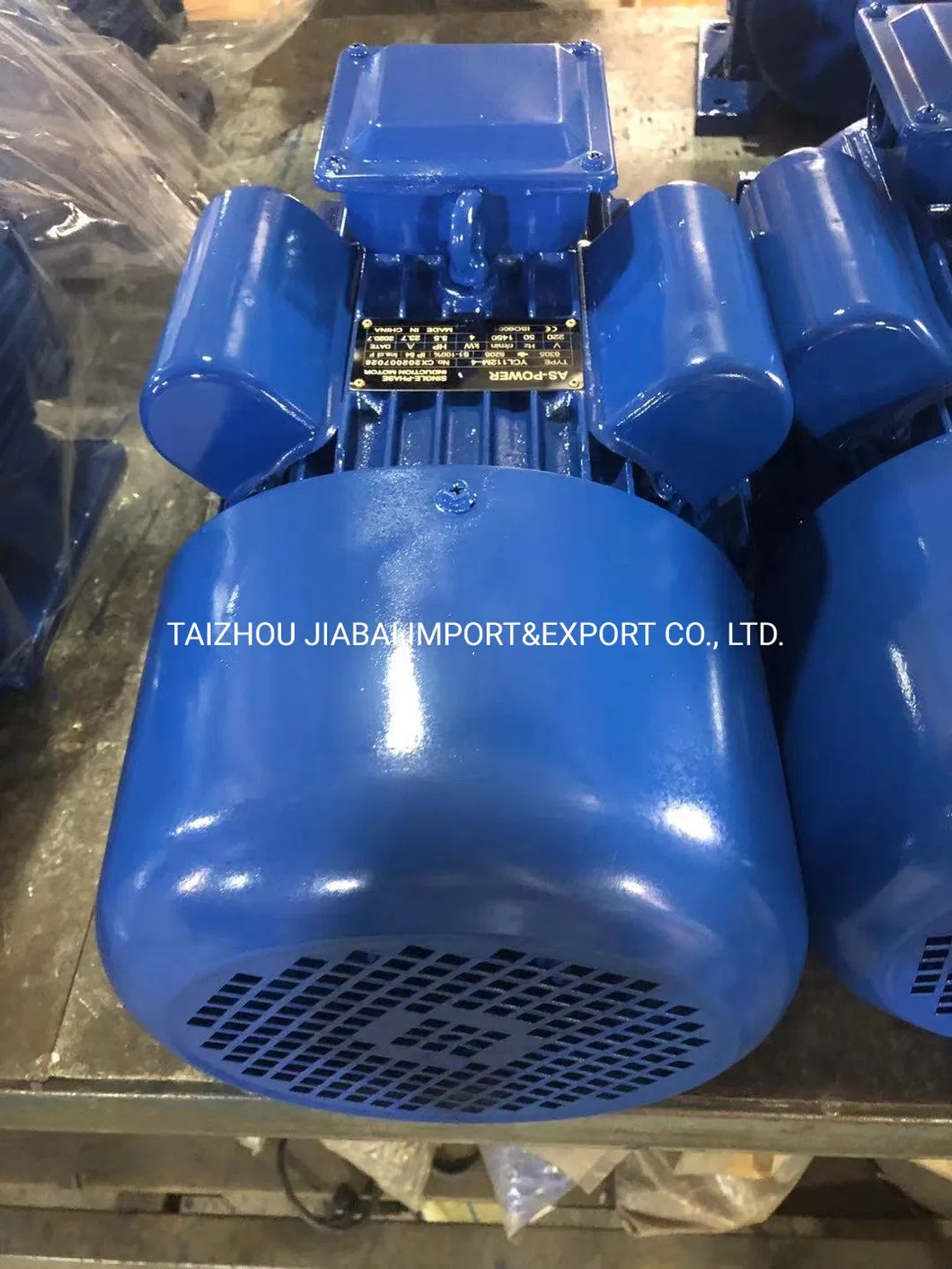

Yc Vertical Horizontal Asynchronous Electric/Electrical AC Motor Motor


Quantity:

Inquire Add to Basket

Customization:	Available
Application:	Industrial, Universal, Household Appliances, Power Tools
Operating Speed:	Low Speed

Product Description

Basic Info.

Model NO.

YC90L-4

Species

Yc Series, Single Phase

Rotor Structure

Squirrel-Cage

Casing Protection

Protection Type

Number of Poles

4

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC

Brand

Sincen

Protection

IP54

Power

0.75kw

Motor Housing

Cast Iron

Voltage

220V

Wire Coil

Copper Wire

Color Painting

as Per Request

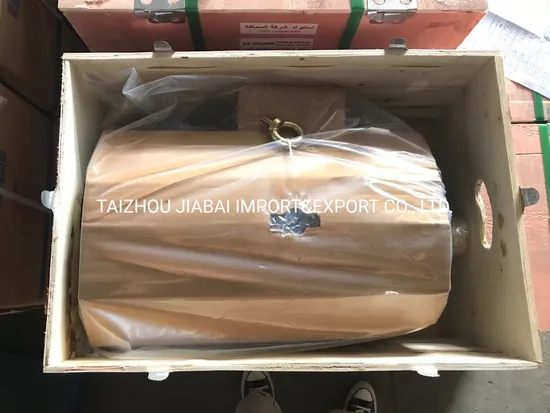

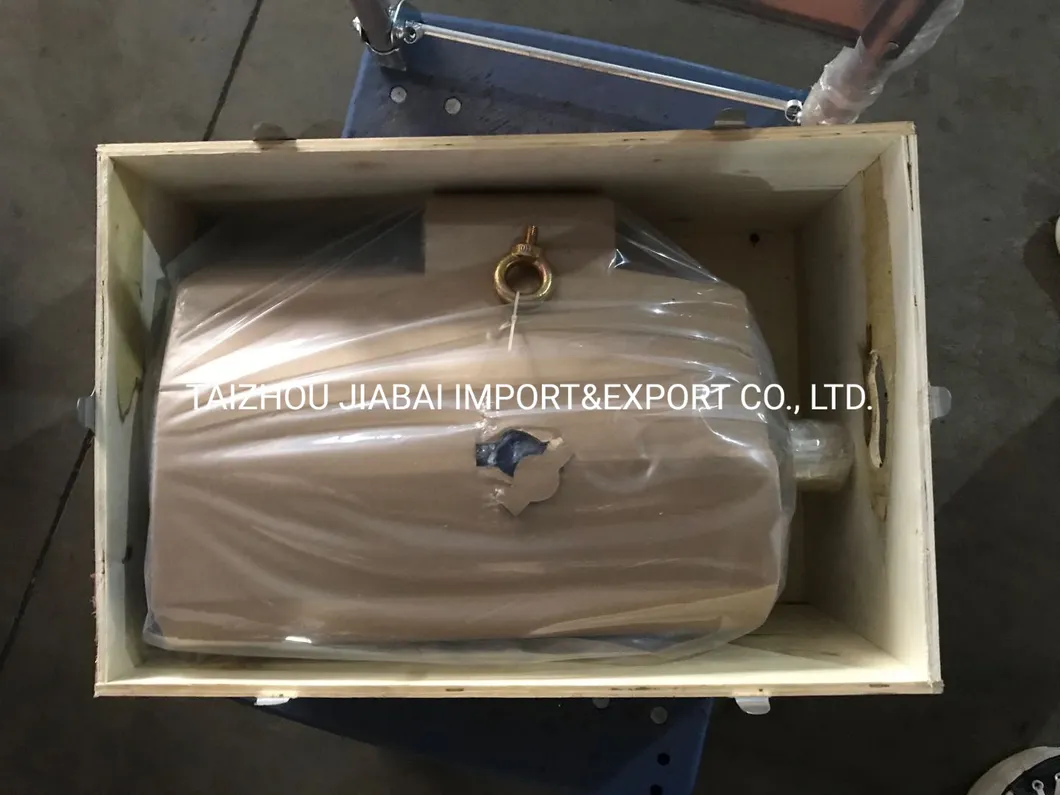

Transport Package

Export-Standard Package

Trademark

SINCEN

Origin

China

HS Code

850151

Production Capacity

50000PCS/Month

Product Description

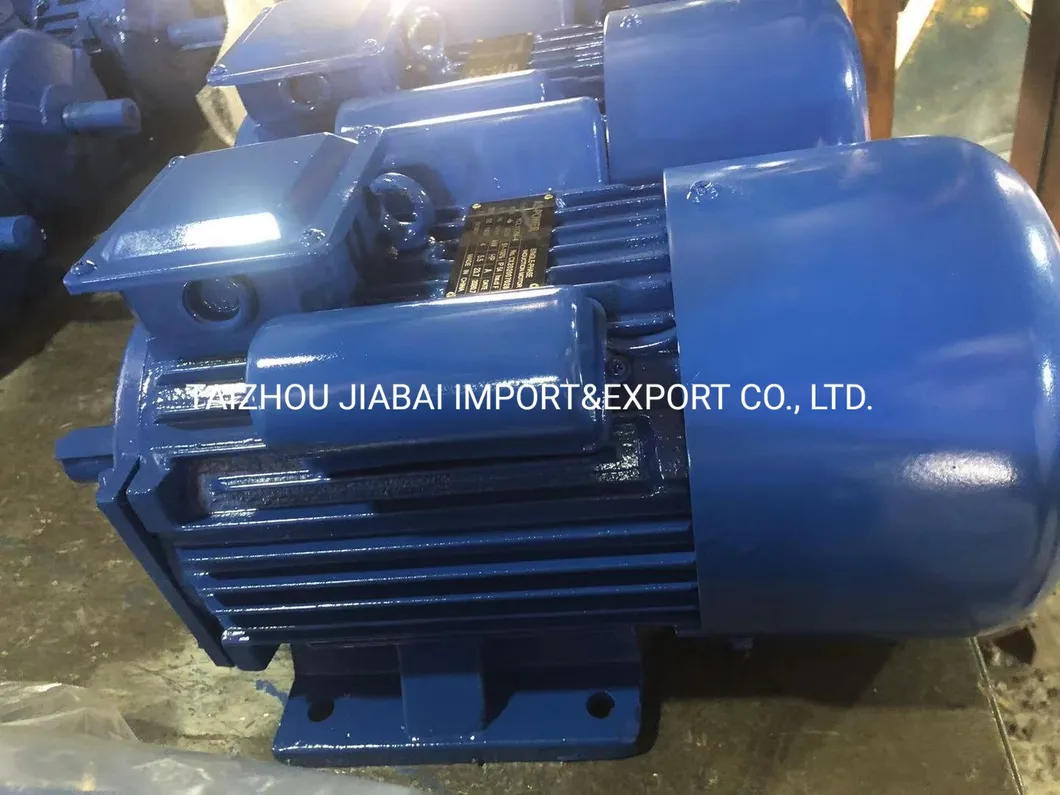

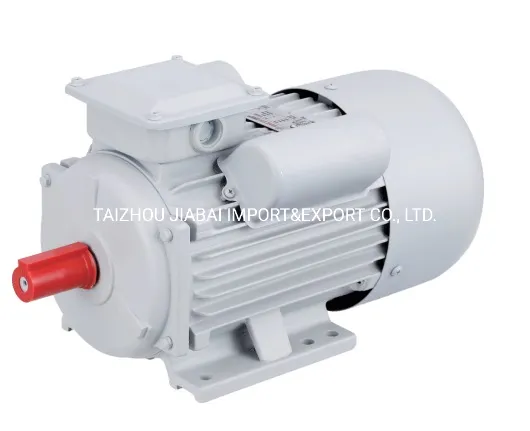

YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Protection Class: IP44/IP54 Cooling Type: IC0141
Insulation Class:B or F Operation Type: S1
Rated Voltage: 115/230,220V Rated Frequency: 60 Hz(50Hz)

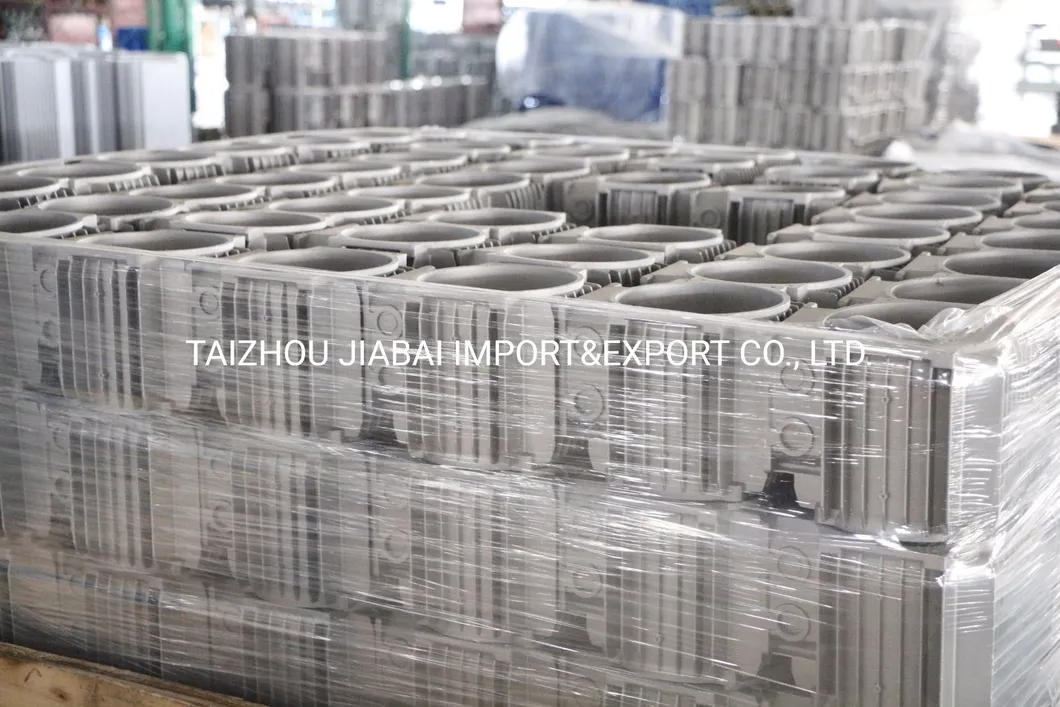

Shell material: casting iron and aluminium alloy (only used below 100)

Technical Data (220V/50Hz)

Model	Power		Current (A)	Power Factor (cos¢)	Eff (%)	Speed (r/min)	locked torque Rated torque Tst/Tn	locked current Rated current Ist/In	Tmax/ Tn
Model	Hp	kW	Current (A)	Power Factor (cos¢)	Eff (%)	Speed (r/min)	locked torque Rated torque Tst/Tn	locked current Rated current Ist/In	Tmax/ Tn
YC7112	1/4	0.18	1.89	0.72	60	2800	3.0	7	1.8
YC7122	1/3	0.25	2.4	0.74	64	2800	3.0	7	1.8
YC8012	1/2	0.37	3.4	0.77	65	2800	2.8	6.5	1.8
YC8022	3/4	0.55	4.7	0.79	68	2800	2.8	6.5	1.8
YC90S-2	1	0.75	6.1	0.8	70	2800	3.0	6.5	1.8
YC90L-2	1.5	1.1	8.7	0.8	72	2800	2.5	7	1.8
YC90L-2	2	1.5	11.4	0.81	74	2800	2.5	7	1.8
YC100L-2	3	2.2	16.5	0.81	75	2800	2.2	7	1.8
YC100L1-2	4	3	21.88	0.82	76	2800	2.2	6.8	1.8
YC100L-2	5	3.7	26.64	0.82	77	2800	2.2	6.4	1.8
YC112M-2	4	3	21.4	0.82	76	2800	2.2	7	1.8
YC7114	1/6	0.12	1.88	0.58	50	1400	3.0	9	1.8
YC7124	1/4	0.18	2.49	0.62	53	1400	2.8	7	1.8
YC8014	1/3	0.25	3.11	0.63	58	1400	2.8	6	1.8
YC8024	1/2	0.37	4.24	0.64	62	1400	2.5	6	1.8
YC90S-4	3/4	0.55	5.5	0.69	66	1400	2.5	6	1.8
YC90L-4	1	0.75	6.9	0.73	68	1400	2.5	6.5	1.8
YC90L-4	1.5	1.1	9.6	0.74	71	1400	2.5	6.5	1.8
YC100L-4	2	1.5	12.5	0.75	73	1400	2.5	6.5	1.8
YC112M-4	3	2.2	17.8	0.76	74	1400	2.2	6.5	1.8
YC132S-4	4	3	23.6	0.77	75	1400	2.1	6.5	1.8
YC132S-4	5	3.7	28	0.79	76	1400	2.1	6.5	1.8
YC132M-4	7.5	5.5	32.5	0.95	81	1400	2.1	6.5	1.8

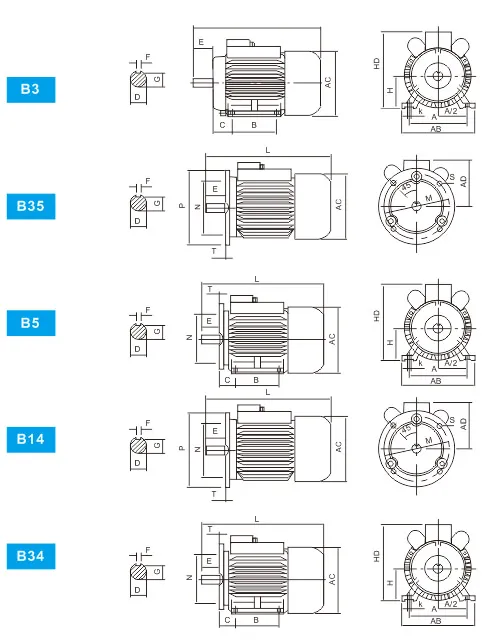

OVERALL INSTALLATION DIMENSION: Yc Vertical Horizontal Asynchronous Electric/Electrical AC Motor Motor

Frame	Installation dimensions																					Dimensions
	IMB3									IMB14 IMB34						IMB5 IMB35						IMB3
	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	M	N	P	R	S	T	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	130	110	160	-	10	3.5	145	145	140	95	180	255
80	125	100	50	19	40	6	15.5	80	10	110	80	120	0	M6	3	165	130	200	0	12	3.5	160	165	150	110	200	295
90S	140	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	370
90L	140	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	400
100L	160	140	63	28	60	8	24	100	12	-	-	-	-	-	-	215	180	250	0	15	4	205	200	180	130	260	430
112M	190	140	70	28	60	8	24	112	12	-	-	-	-	-	-	215	180	250	0	15	4	245	250	190	140	300	455
132S	216	140	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525
132M	216	178	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525
