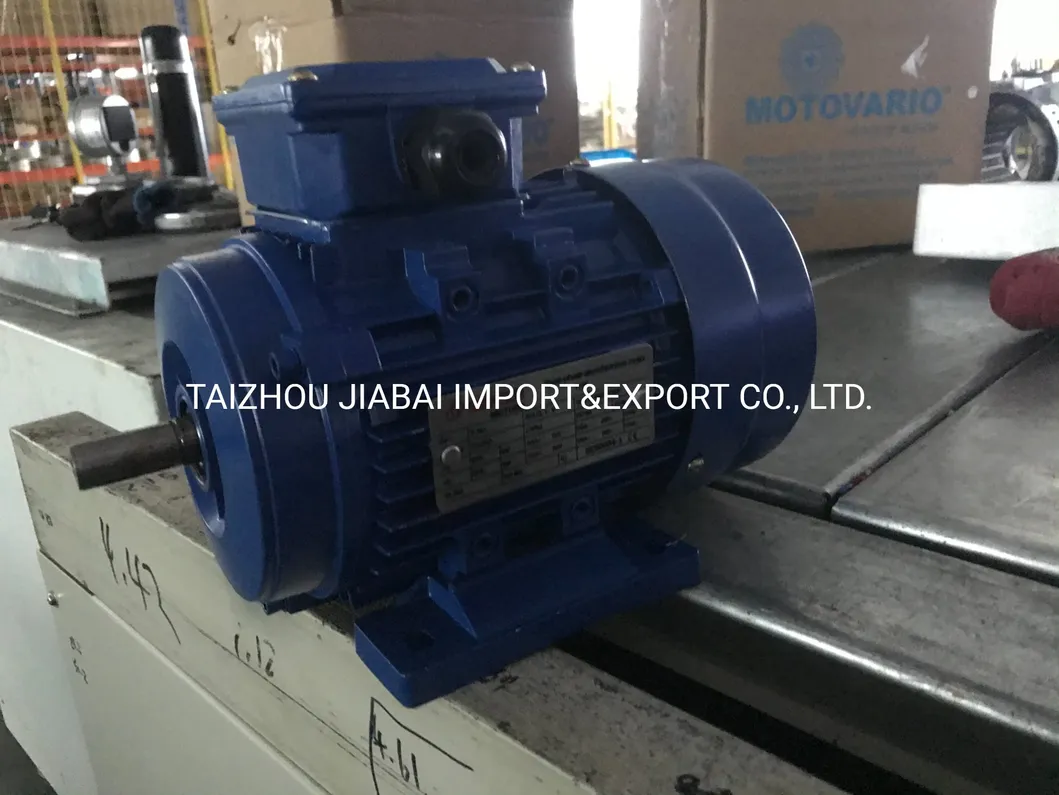

Ms 4pole 0.18-7.5kw High Efficiency Three Phase Asynchronous Electric AC Motor


Quantity:

Inquire Add to Basket

Customization:	Available
Application:	Industrial, Universal, Household Appliances, Power Tools
Operating Speed:	Low Speed

Product Description

Basic Info.

Model NO.

MS132S2-2

Species

Ms Series, Three Phase

Rotor Structure

Squirrel-Cage

Casing Protection

Protection Type

Number of Poles

2

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC

Brand

Sincen

Protection

IP54

Power

7.5kw

Motor Housing

Cast Iron

Voltage

380V,415V,660V

Wire Coil

Copper Wire

Color Painting

as Per Request

Transport Package

Export-Standard Package

Trademark

SINCEN

Origin

China

HS Code

850151

Production Capacity

50000PCS/Month

Product Description

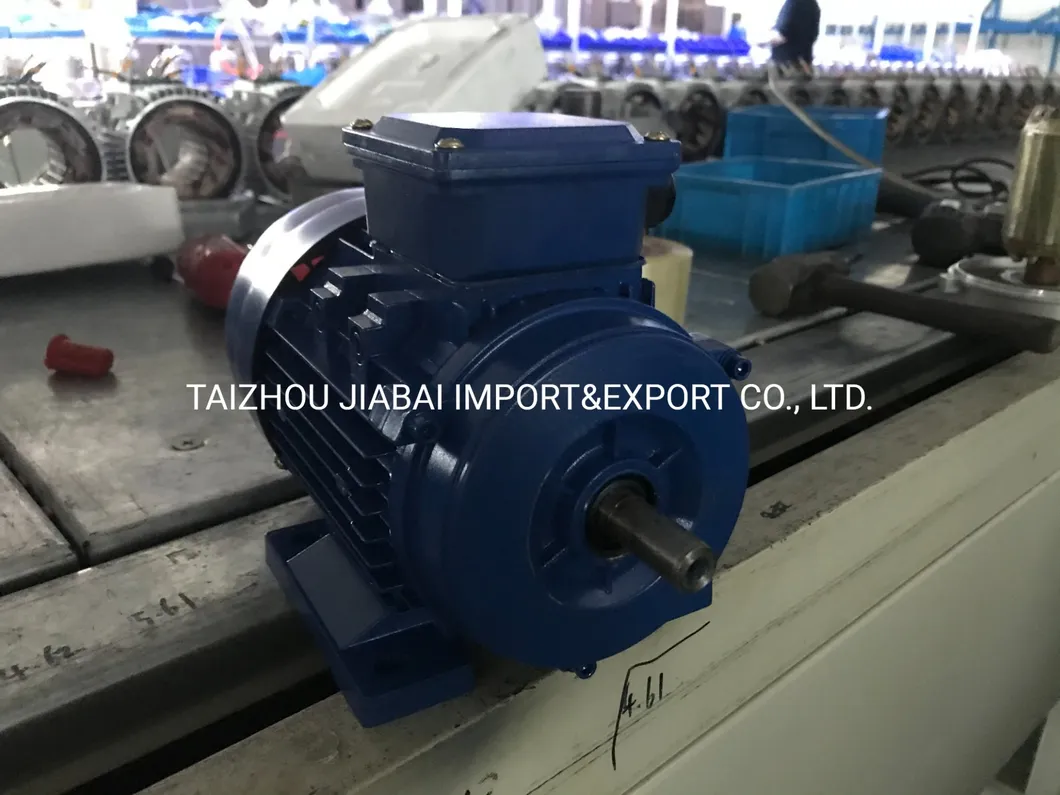

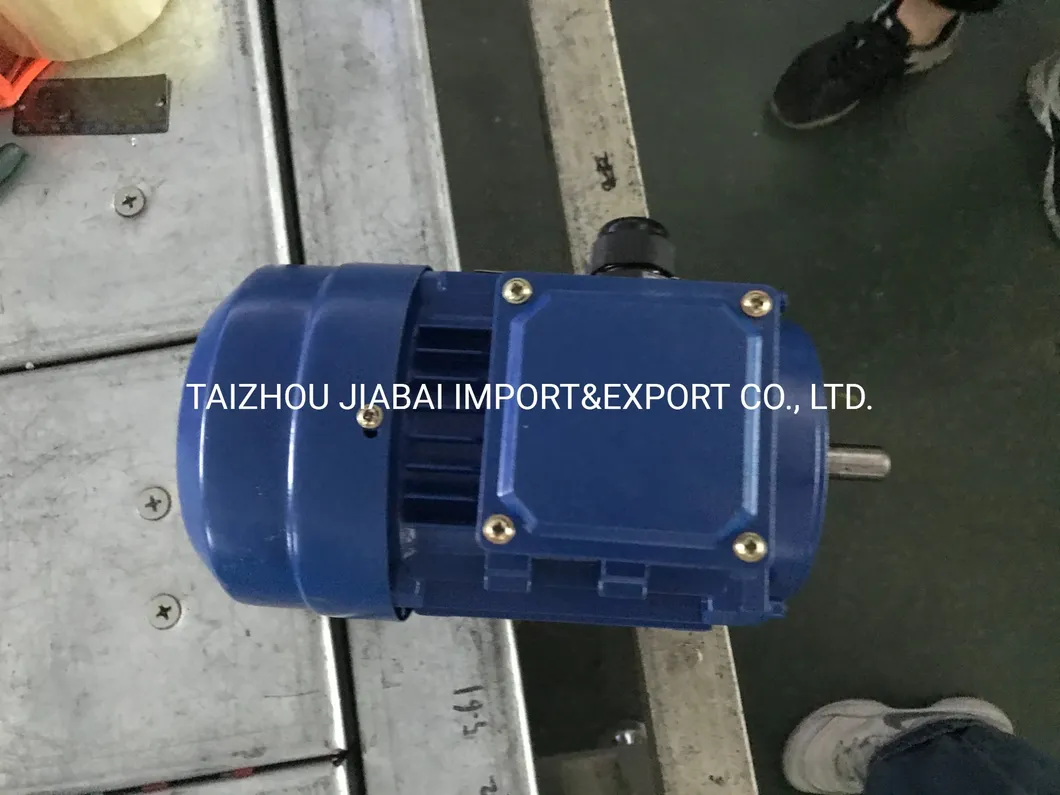

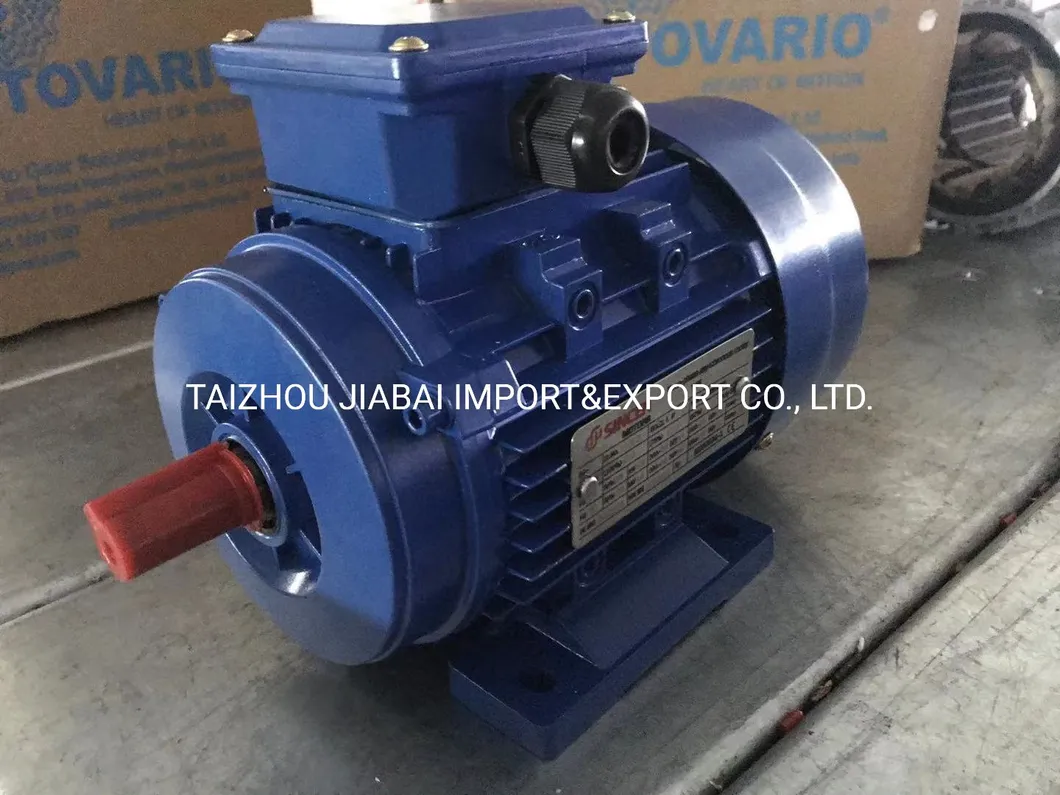

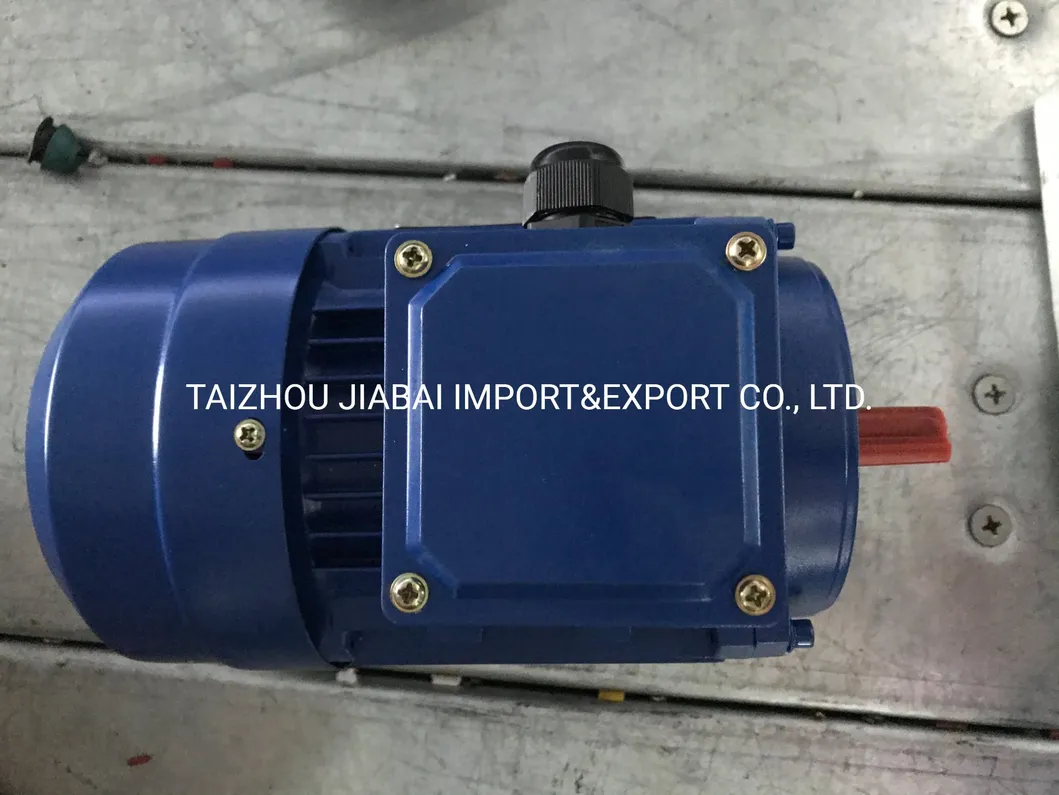

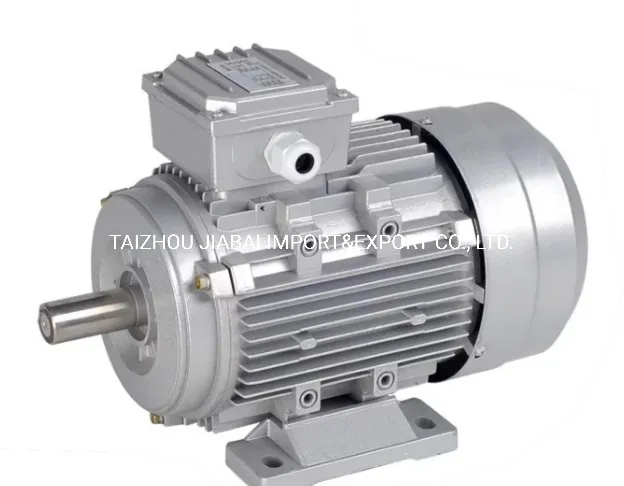

MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.
The efficiency of MS motor meets EFF2 standard in E. U., and can reach the EFF1 standard if requested. MS motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.

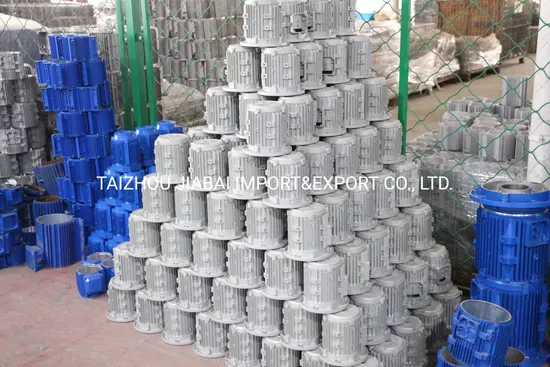

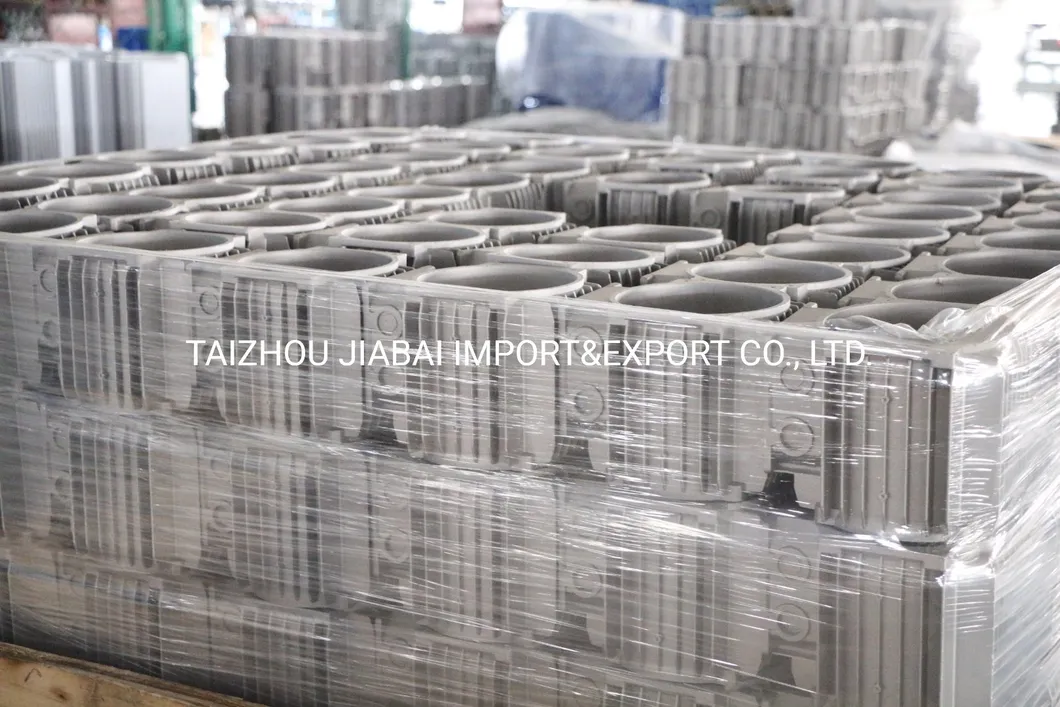

MS motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motor.

MS motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc.
Outlined Description :

Power:	0.55kw-15kw	Voltage:	380/415/440V( can can done as your need)
Frequency:	50/60hz	Enamelled Wire:	Copper Wire (Can Done Aluminum wire as Your Need)

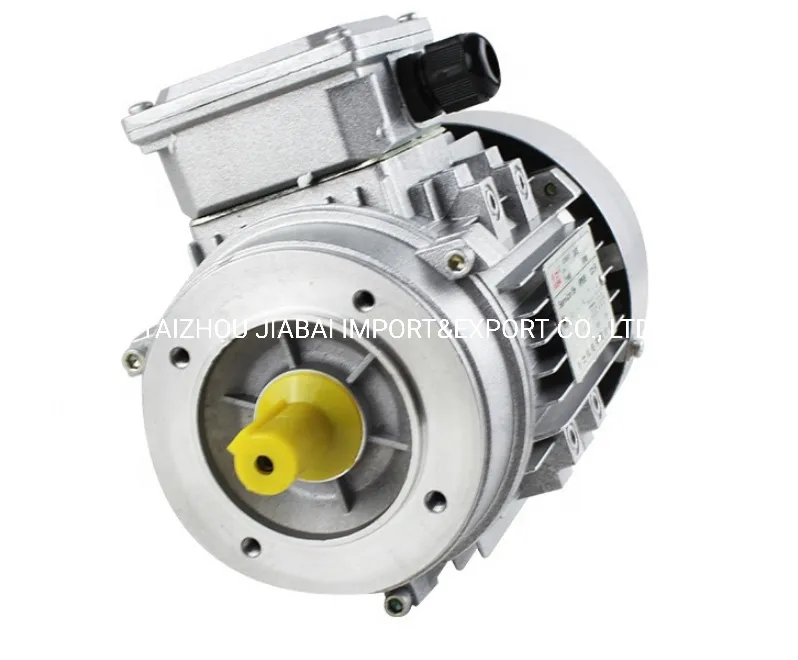

Insulation Class:	F	Mounting Way:	B3 Foot /B5 Flange /B35 Foot and Flange/ B14 flange/B34 foot and flange
Protection Grade:	IP55	motor body :	aluminum of ac motor

PERFORMANCE DATAS:

MODEL	POWER (kW)	Current (A)	SPEED r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated cuffrent	Breakdown torque Rated torque
Synchronous speed 3000r/min
MS63M1-2	0.18	0.53	2720	65.0	0.80	2.2	5.5	2.2
MS63M2-2	0.25	0.69	2720	68.0	0.81	2.2	5.5	2.2
MS71M1-2	0.37	0.99	2740	70.0	0.81	2.2	6.1	2.2
MS71M2-2	0.55	1.4	2740	73.0	0.82	2.2	6.1	2.3
MS80M1-2	0.75	1.8	2840	75.0	0.83	2.2	6.1	2.3
MS80M2-2	1.1	2.6	2840	77.0	0.84	2.2	7.0	2.3
MS90S-2	1.5	3.4	2845	79.0	0.84	2.2	7.0	2.3
MS90L-2	2.2	4.9	2845	81.0	0.85	2.2	7.0	2.3
MS100L-2	3	6.3	2860	83.0	0.87	2.2	7.5	2.3
MS112M-2	4	8.1	2880	85.0	0.88	2.2	7.5	2.3
MS132S1-2	5.5	11.0	2900	86.0	0.88	2.2	7.5	2.3
MS132S2-2	7.5	14.9	2900	87.0	0.88	2.2	7.5	2.3
MS160M1-2	11	21.3	2930	88.0	0.89	2.2	7.5	2.3
MS160M2-2	15	28.8	2930	89.0	0.89	2.2	7.5	2.3
MS160L-2	18.5	34.7	2930	90.0	0.90	2.2	7.5	2.3
Synchronous speed 1500r/min
MS63M1-4	0.12	0.44	1310	57.0	0.72	2.1	4.4	2.2
MS63M2-4	0.18	0.62	1310	60.0	0.73	2.1	4.4	2.2
MS71M1-2	0.25	0.79	1330	65.0	0.74	2.1	5.2	2.2
MS71M2-4	0.37	1.12	1330	67.0	0.75	2.1	5.2	2.2
MS80M1-4	0.55	1.6	1390	71.0	0.75	2.4	5.2	2.3
MS80M2-4	0.75	2.0	1390	73.0	0.76	2.3	6.0	2.3
MS90S-4	1.1	2.9	1390	75.0	0.77	2.3	6.0	2.3
MS90L-4	1.5	3.7	1390	78.0	0.79	2.3	6.0	2.3
MS100L1-4	2.2	5.2	1410	80.0	0.81	2.3	7.0	2.3
MS100L2-4	3	6.8	1410	82.0	0.82	2.3	7.0	2.3
MS112M-4	4	8.8	1440	84.0	0.82	2.3	7.0	2.3
MS132S-4	5.5	11.8	1440	85.0	0.83	2.3	7.0	2.3
MS132M-4	7.5	15.6	1440	87.0	0.84	2.3	7.0	2.3
MS160M-4	11	22.3	1460	88.0	0.84	2.2	7.0	2.3
MS160L-4	15	30.1	1460	89.0	0.85	2.2	7.5	2.3
Synchronous speed 1000r/min
MS71M1-6	0.18	0.74	850	56.0	0.66	1.9	4.0	2.0
MS71M2-6	0.25	0.95	850	59.0	0.68	1.9	4.0	2.0
MS80M1-6	0.37	1.3	885	62.0	0.70	1.9	4.7	2.0
MS80M2-6	0.55	1.8	885	65.0	0.72	1.9	4.7	2.1
MS90S-6	0.75	2.3	910	69.0	0.72	2.0	5.5	2.1
MS90L-6	1.1	3.2	910	72.0	0.73	2.0	5.5	2.1
MS100L-6	1.5	3.9	920	76.0	0.75	2.0	5.5	2.1
MS112M-6	2.2	5.6	935	79.0	0.76	2.0	6.5	2.1
MS132S-6	3	7.4	960	81.0	0.76	2.1	6.5	2.1
MS132M1-6	4	9.8	960	82.0	0.76	2.1	6.5	2.1
MS132M2-6	5.5	12.9	965	84.0	0.77	2.1	6.5	2.1
MS160M-6	7.5	17.2	970	86.0	0.77	2.0	6.5	2.1
MS160L-6	11	24.2	970	87.5	0.78	2.0	6.5	2.1
Synchronous speed 750r/min
MS80M1-8	0.18	0.88	645	51.0	0.61	1.8	3.3	1.9
MS80M2-8	0.25	1.15	645	54.0	0.61	1.8	3.3	1.9
MS90S-8	0.37	1.49	670	62.0	0.61	1.8	4.0	1.9
MS90L-8	0.55	2.17	670	63.0	0.61	1.8	4.0	2.0
MS100L1-8	0.75	2.4	680	71.0	0.67	1.8	4.0	2.0
MS100L2-8	1.1	3.4	680	73.0	0.69	1.8	5.0	2.0
MS112M-8	1.5	4.4	690	75.0	0.69	1.8	5.0	2.0
MS132S-8	2.2	6	705	78.0	0.71	1.8	6.0	2.0
MS132M-8	3	7.9	705	79.0	0.73	1.8	6.0	2.0
MS160M1-8	4	10.3	720	81.0	0.73	1.9	6.0	2.0
MS160M2-8	5.5	13.6	720	83.0	0.74	2.0	6.0	2.0
MS160L-8	7.5	17.8	720	85.5	0.75	2.0	6.0	2.0

Frame	The number of poles	Installation dimensions																Dimensions
Frame	The number of poles	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	Flange Number of holes	AB	AC	AD	HD	HF	L
63M	2.4	110	80	40	11	23	4	8.5	63	75	60	90	0	M5	2.5	7	4	135	130	70	180	130	230
71M	2.4.6	112	90	45	14	30	5	11	71	85	70	105	0	M6	2.5	7	4	150	145	80	195	145	255
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	100	80	120	0	M6	3	10	4	165	175	145	214	185	295
90S	2.4.6.8	140	100	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	250	195	320
90L	2.4.6.8	140	125	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	250	195	345
100L	2.4.6.8	160	140	63	28	60	8	24	100	130	110	160	0	M8	3.5	12	4	205	215	180	270	245	385
112M	2.4.6.8	190	140	70	28	60	8	24	112	130	110	160	0	M8	3.5	12	4	230	240	190	300	265	400

Frame number	The number of poles	Installation dimensions											Dimensions
Frame number	The number of poles	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	HF	L
63M	2.4	100	80	40	11	23	4	8.5	63	115	95	140	0	10	3	7	135	130	70	180	130	230
71M	2.4.6	112	90	45	14	30	5	11	71	130	110	160	0	10	3.5	7	150	145	80	195	145	255
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	185	295
90S	2.4.6.8	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	320
90L	2.4.6.8	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	345
100L	2.4.6.8	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	245	385
112M	2.4.6.8	190	140	70	28	60	8	24	112	215	180	250	0	15	4	12	230	240	190	300	265	400
132S	2.4.6.8	216	140	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	470
132M	2.4.6.8	216	170	89	38	80	10	33	132	265	230	300	0	15	4	12	240	275	210	345	315	510
160M	2.4.6.8	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	615
160L	2.4.6.8	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	670
