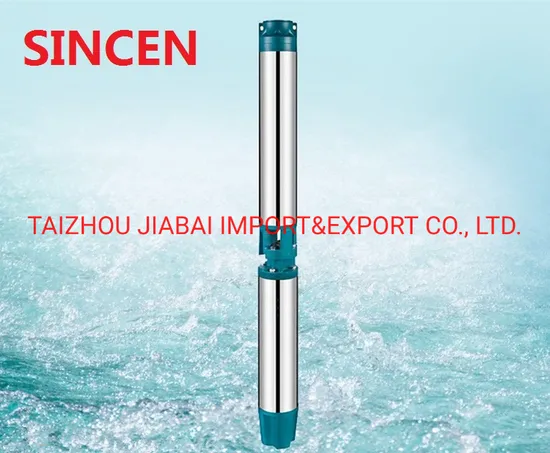

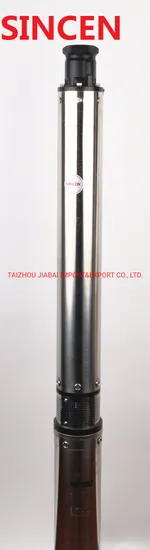

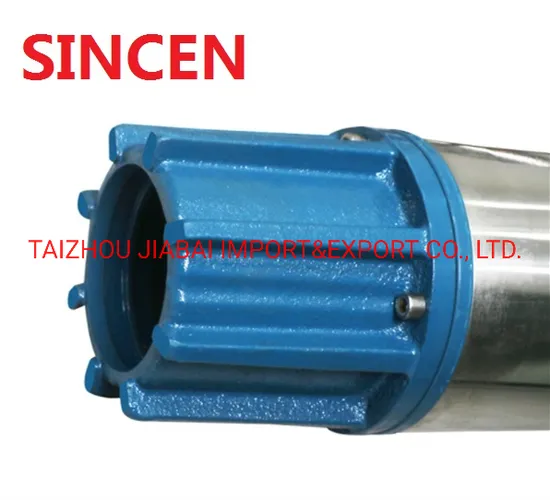

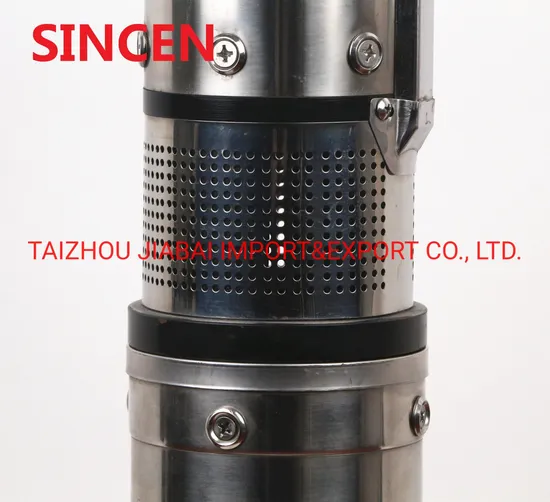

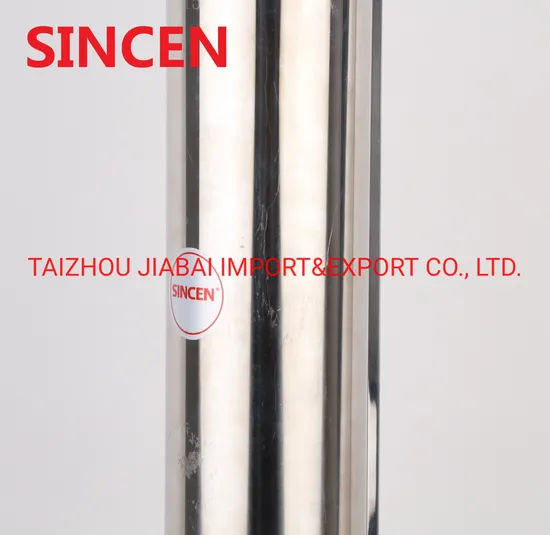

Sincen 6sr30/6 Stainless Steel Deep Well Submersible Pump

Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.

Operating conditions
Maximum fluid temperature up to +35°C
Maximum sand content:0.25%
Maximum immersion:100M
Minimum well diameter:4"

Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50HZ
1.Direct start(1 cable)
2.Star-delta(2 cables)
Equip with start control box or digtial auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

Options on request
Special mechanical seal
Other voltages or frequency 60HZ

Warranty:1 year
(according to our general sales conditions).

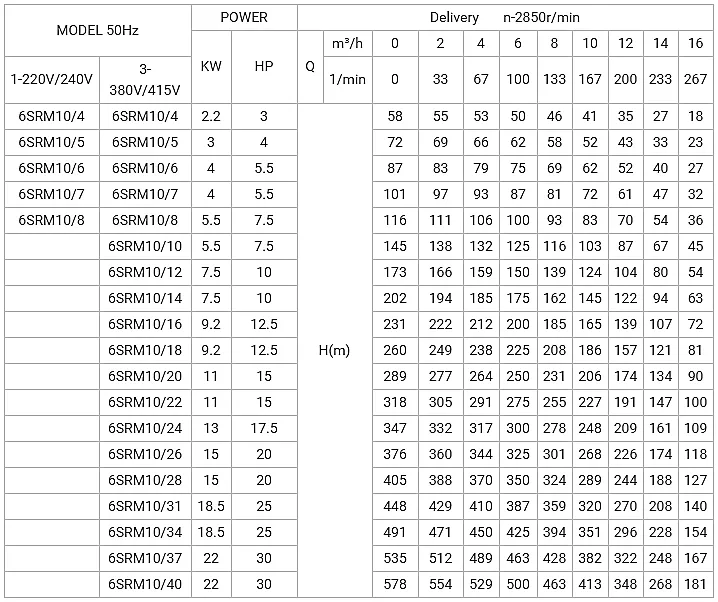

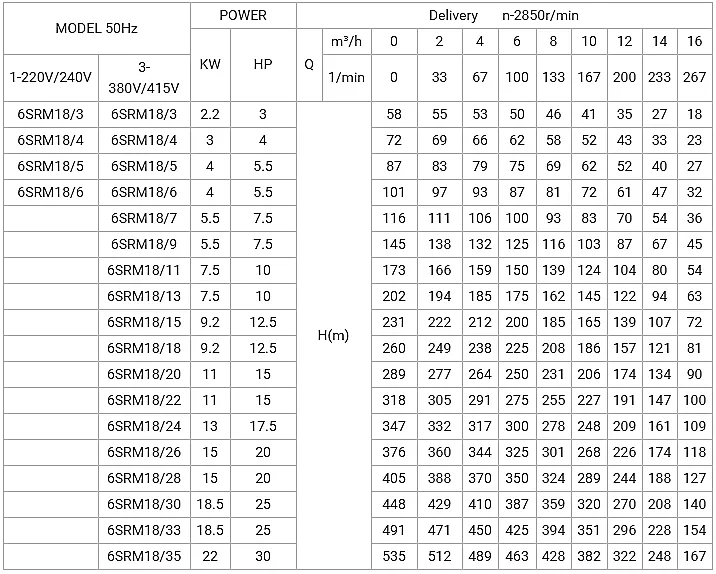

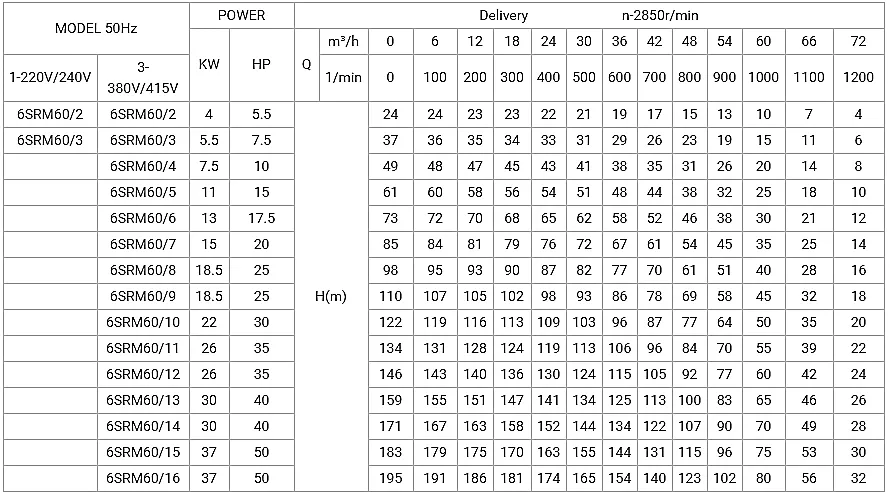

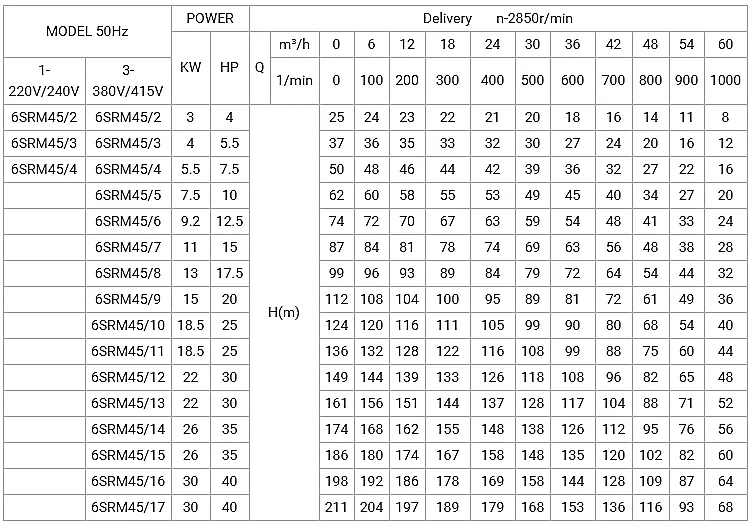

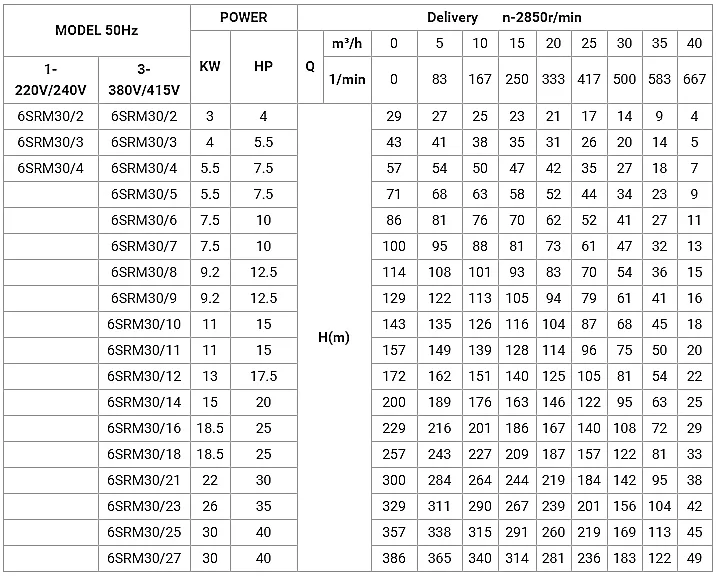

PERFORNANCE DATA 50HZ

Q1. What's your company's main products?
A: Our company is specialized in pumps, fans, motors, air compressors, electric welders and so on.

Q2. What's your payment term?
A: 30% T/T in advance, the rest pay off before delivery.

Q3. What's the MOQ for your production?
A: The MOQ is 100pcs or depends on your requirements.

Q4. Is it all right to make customer's own brand name?
A: OEM is ok.

Q5. Where is your loading port?
A: Ningbo, or else port in China as your requirements.

Q6. Are you a manufacturer or trading company?
A: We are a manufacturer.
